Electric pedestrian controlled truck 1.2 - 2t

2400 - 6000 mm
1200 - 2000 kg

Powerful, maintenance-free 3-phase AC drive motor.
Lifting of enclosed pallets or cross pallets.
Proportional hydraulics for accurate lifting and lowering.
Safe operation at crawl speed with the tiller raised.
Customised adaptation to a wide variety of applications.

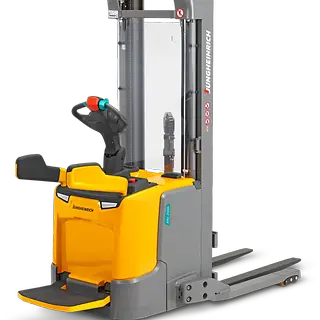

ERC 212b - 220b

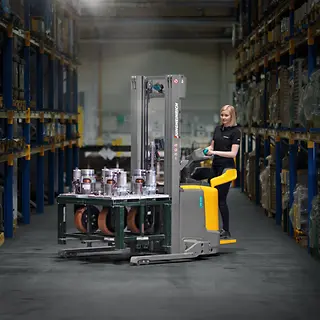

The flexible and efficient ERC 2b pedestrian stackers are specifically designed for the handling of special goods. Their support arms are laterally offset and their forged forks can be lowered completely to the ground. This makes it possible to pick up load units from below. The forks are available in different variations. Our assistance systems also guarantee the following: operationCONTROL warns the operator when the residual capacity is exceeded, while positionCONTROL enables the selection of a predefined lifting height for safe and efficient load handling. The strong and particularly precise lift motor allows for very gentle lifting and lowering of cargo at heights up to 6 metres. In addition, both the four-wheel concept and optional assistance systems such as the overload warning system operationCONTROL or the lifting height preselection positionCONTROL ensure more safety and efficiency in everyday warehouse operations.

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Intelligent control and advanced drive technology

A modern 3-phase AC drive motor for greater performance and simultaneously reduced operating costs.
High efficiency levels with excellent energy management.
Powerful acceleration.
Rapid direction change.
Roll-back protection on gradients.
Increased travel speed and acceleration thanks to drivePLUS (11 km/h instead of 9 km/h) and load-dependent driving and steering behaviour.

Long operating times with lead-acid battery

Long service life with high battery capacities up to 375 Ah.
Built-in charger (24 V) for wet cell batteries and maintenance-free batteries for easy charging at any 230-V mains socket (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Easy stacking and retrieval

Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
Precise and gentle lifting of the load by speed-controlled hydraulic motor.
Gentle depositing of loads using proportional hydraulics.
Four-wheel concept for high stability.

Comfortable and safe operation

Fatigue-free work due to electric tiller steering.
curveCONTROL automatically reduces the speed when cornering.
The sprung stand-on platform effectively removes strain on the operator's spine.
Soft lined side arms (optional) ensure a comfortable posture when cornering.

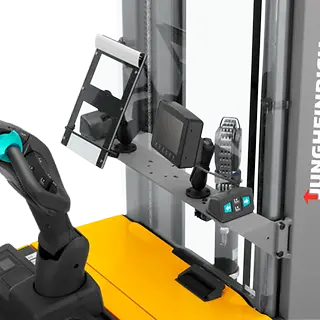

Lifting and lowering of the forks as well as driving by touch operation on the options bracket during order picking (optional).

Always informed

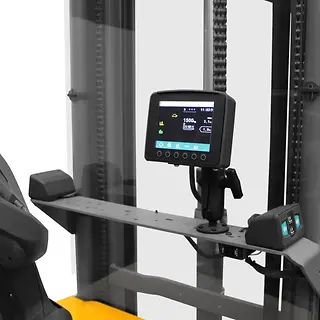

6-inch additional display including load display (optional) for assistance systems.
Standard display for indication of battery charge status, number of operating hours and event messages.
Choice of 3 travel programmes.

Wide-tread version

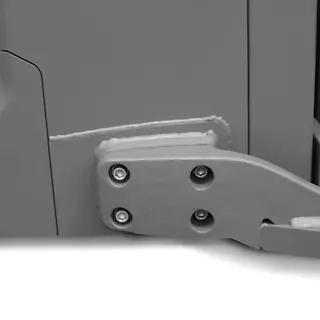

Laterally offset support arms and forged forks that can be lowered to the ground.
For flexible handling of special loads, transverse Euro pallets or closed pallets (UK, US).

Flexible options in ride-on mode

Model 1: Folding stand-on platform without side arms, travel speed 6 km/h.
Model 2: Folding stand-on platform with side arms (optional), travel speed 7 km/h.
Model 3: Folding stand-on platform with side arms and high drivePLUS speed (optional), travel speed 11 km/h.

Flexibility in pedestrian mode

The stand-on platform and side arms can be folded in when used in confined spaces.
Leading the vehicle at a speed of 4.4 km/h.

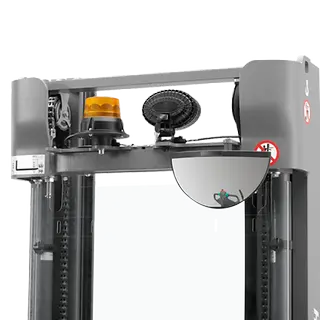

Additional Equipment

Twin roller support wheels to reduce wear.
Cold store version.

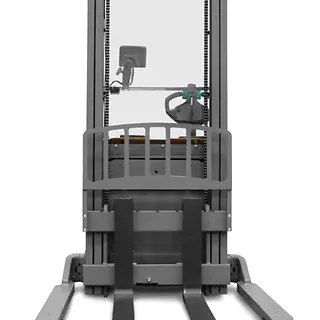

Load guard.
Wear protection of fork skids.




Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ERC 212b	1,200 kg	4,700 mm	11 km/h	2,030 mm	24 V
ERC 214b	1,400 kg	6,000 mm	11 km/h	2,123 mm	24 V
ERC 216b	1,600 kg	6,000 mm	11 km/h	2,123 mm	24 V
ERC 220b	2,000 kg	6,000 mm	10 km/h	2,123 mm	24 V
