Order picker 1.0t

750 mm
1000 kg

Maximum picking performance for loads up to 1000 kg
Powerful motor with high acceleration
jetPILOT for intuitive operation same as driving a car
Ergonomically picking with lifting load section
Semi-automatic remote control easyPILOT (optional)

ECE 310

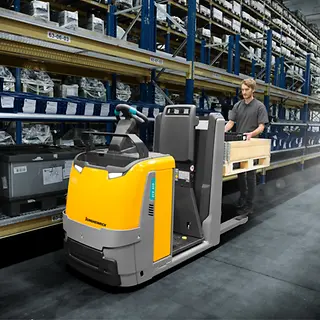

Our reliable and ergonomic ECE 310 low level order picker is the perfect choice for back-friendly order picking. Thanks to the liftable load section, goods can be easily stored at the correct height. Additionally, the truck combines high picking performance with low energy consumption. The award-winning jetPILOT multifunction steering wheel for precise driving as well as seamless changes between different driving modes guarantee intuitive handling and high safety. A wide range of options and various feature packages offer maximum flexibility for efficient work in your warehouse. Dynamic acceleration, safe cornering and high speeds are further advantages of these order pickers. In addition, the individually adjustable workstation allows comfortable handling thanks to the great accessibility of all operating elements.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Powerful and efficient drive concept

Powerful acceleration and high top speed.
Optional drivePLUS package with highly efficient 3.2 kW motor for even greater drive and acceleration performance.
Safe cornering speed thanks to load-dependent curveCONTROL (optional).
Optional drive&ecoPLUS package for additional energy saving.

Flexible switching between different control options

Long distances (from approx. 10 m): Travelling with jetPILOT.
Medium distances: Remote operation with Jungheinrich easyPILOT allows for full focus on the picking process.
Short distances: Positioning at the correct pallet and fine adjustment, e.g. via touch mode on the backrest (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and low maintenance in comparison with lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Comfort charging system for lithium-ion batteries

Battery charging system with comfort charging socket and plug for time-saving booster charging.
Simple and intuitive handling.

Hydraulically lifting stand-on platform (HP) (optional)

For frequent order picking from the second racking level.
Rapid and safe raising of the operator up to the height of the battery panel.
Operation of platform via foot pedal, leaving hands free for order picking.
The optional jetPILOT can be raised together with the platform (HP-LJ), allowing the truck to be positioned even when the platform is raised.

Improved visibility

Better visibility in poorly lit areas thanks to integrated dayLED daytime running lights (optional).
Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).

Rugged construction for the toughest applications

Impact-resistant steel drive panel.
High-quality stainless steel skirt raised extra high on the front panel.

Central display and clear instruments for complete overview

Activation of the truck by EasyAccess via softkey, PIN code or optional transponder card.
The 2-inch display provides information on the battery discharge status, number of operating hours, travel speed as well as error codes.
Selection from three travel programs via softkey (optional).

Perfect workstation for maximum picking performance

Various, individually adjustable storage options.
Additional cushioned and movable stand-on platform (optional).
Quick lifting of the load through optional double actuation of the lifting button.

jetPILOT multifunction steering wheel

Intuitive and comfortable operation, similar to a car, with safe and secure grip.
Reduced strain on neck and spinal column when cornering.
One-handed operation and automatic return of the steering wheel to straight line travel.
Adjustable to individual body size.

Additional optional equipment

A comprehensive range of accessories allows for individual tailoring to your requirements.
Additional accessories for working at the second racking level.
Sturdy, universally applicable options bracket, e.g. for radio data transmission components.
Increased ease of use with optional sprung stand-on platform to reduce the vibrations felt by the operator.


Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ECE 310	1,000 kg	750 mm	14 km/h	2,471 mm	24 V
ECE 310 HP	1,000 kg	750 mm	14 km/h	2,621 mm	24 V
