Electric forklift truck 2.5 - 3.5t

2900 - 7500 mm
2500 - 3500 kg

High-performance travel and lift speeds.
Narrow B-pillars design and panoramic roof for increased safety.
Compact mast profiles with the best all-round visibility.
Heavy-duty hydraulic block for efficient work with attachments.
Individually adjustable, ergonomically sophisticated workplace.

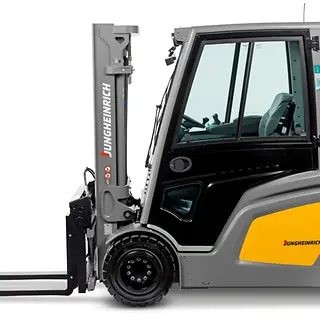

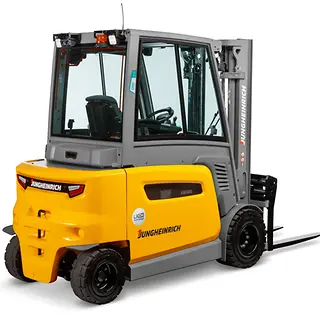

EFG 425-435

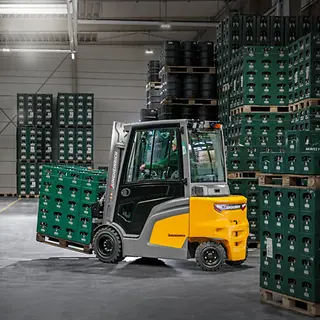

Whether in the beverage industry, the building materials trade or the automotive sector, our versatile and efficient Series 4 electric four-wheel counterbalance forklift trucks are the perfect choice when it comes to the rapid handling of heavy loads for the internal transport of goods. Capacities of up to 3,500 kg make them particularly suitable for use with attachments. Two quiet drive motors provide the trucks with the necessary power, while the panoramic roof in combination with a narrow B-pillar guarantees optimal visibility. Optional travel assistance systems ensure safety. Ergonomically speaking, the EFG Series 4 also impresses with its intuitive operating concept and the high degree of customisation capability of the operator position, which not only offers maximum legroom but also a modern audio and sound system for the best mood at work.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Improved energy efficiency

Highly efficient synchronous reluctance motor.
Compact controls and compact hydraulic unit.
Needs-oriented control of the hydraulics and motors.

Individual equipment features

PureEnergy technology concept for optimum efficiency thanks to the precise coordination of the Jungheinrich original components.
drive&liftPLUS package with faster travel and lift speeds.
Efficiency package with curveCONTROL to reduce the speed when cornering.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
Maintenance-free operation and up to 3 times greater service life in comparison with lead-acid batteries.
Ideally suited for multi-shift operation thanks to booster and rapid charging capability.
No battery exchange required.

High degree of ride safety

Safety inspection of the truck before departure by means of a pre-operation check.
Reduction of travel speed when cornering due to curveCONTROL.
No uncontrolled roll-back thanks to automatic parking brake as standard.
Panorama roof window and narrower B-pillar design.

Optional travel assistance systems and safety solutions

addedVIEW 360° camera system with reversing camera.
accessCONTROL: access control system which only unlocks the truck once a sequence of safety checks has been completed: 1. Valid access code, 2. Seat switch closed, 3. Seat belt fastened.
driveCONTROL: travel speed control, which automatically reduces the speed when cornering and from a defined lift height.
liftCONTROL: lift speed control, which reduces the travel speed as well as the tilt speed of the mast from a defined lift height.

Individually adjustable operating concept

Selection of 5 freely configurable travel programs.
A choice of 3 different control systems: soloPILOT, duoPILOT and multiPILOT.
Stepless single-point adjustment of the armrest and steering column in 2 axial directions.
Adjustable lever and axle assignment of the controls.
Single or double pedal operation.

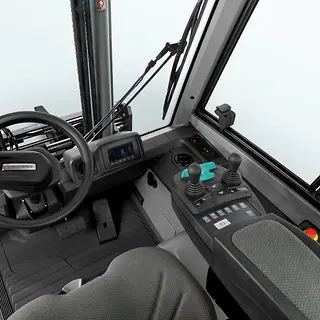

Ergonomic workplace

Low vibration as the cabin is not directly connected to the frame.
Unobstructed view through frameless windows and optimised chain and hose configuration in the mast.
Low, highlighted entry step with level foot-well.
Slim steering column for maximum knee and legroom.
Full-colour TFT display with intuitive user interface.
User-oriented storage concept.
Large, adjustable armrest with different upholstery fabrics and spacious storage compartment.
External power supply via optional USB ports in the armrest and/or the side storage.








Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG 425k	2,500 kg	7,500 mm	20 km/h	3,484 mm	80 V
EFG 425	2,500 kg	7,500 mm	20 km/h	3,632 mm	80 V
EFG 430k	3,000 kg	7,500 mm	20 km/h	3,489 mm	80 V
EFG 430	3,000 kg	7,500 mm	20 km/h	3,637 mm	80 V
EFG S30	3,000 kg	7,500 mm	20 km/h	3,637 mm	80 V
EFG 435	3,500 kg	7,500 mm	20 km/h	3,637 mm	80 V
