โฟล์คลิฟท์ไฟฟ้าแบบสี่ล้อ 1.6 - 2.0 ตัน รุ่น EFG 316-320

2020 - 7000 mm
1600 - 2000 kg

Highest stability even on uneven ground
Best visibility thanks to compact mast
Optimised energy efficiency thanks to PureEnergy
Powerful lift hydraulics for maximum performance even with attachments
Operator-oriented operation for fatigue-free work

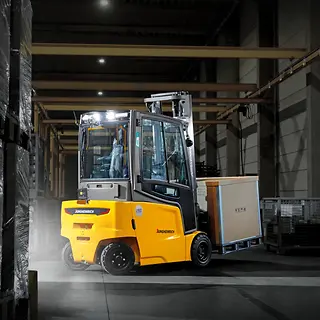

โฟล์คลิฟท์ไฟฟ้าแบบสี่ล้อ รุ่น EFG 316-320

The robust and efficient Series 3 electric four-wheel counterbalance forklift trucks offer the ideal combination of stability and manoeuvrability – the perfect choice for fast, economical work with high lift speeds or applications with attachments. The high-pivot steering axle ensures optimum weight distribution, resulting in maximum stability and ride safety, even on uneven ground. In addition to the powerful hydraulics, maintenance-free lithium-ion batteries with fast booster charging guarantee your truck operates at full power at all times with a permanently high performance. The compact mast gives the operator excellent visibility of the load, while the narrow steering column provides more legroom and the high-resolution full-colour display ensures relaxed and fatigue-free working.

ลิเธียมไอออน

เทคโนโลยีแบตเตอรี่ลิเธียมไอออน

ด้วยเทคโนโลยีแบตเตอรี่ลิเธียมไอออน คุณสามารถวางใจได้ทุกสถานการณ์ - สมรรถนะเต็มกำลังที่สิ้นเปลืองพลังงานต่ำกว่าถึง 20% อายุใช้งานได้ยาวนานกว่า 3 เท่า ใช้เวลาชาร์จต่ำ ไม่ต้องดูแลรักษา ช่วยคุณลดต้นทุนค่าใช้จ่ายโดยรวมของรถยกทั้งฟลีทและลดค่าใช้จ่ายในการดำเนินงานอย่างเห็นได้ชัด

เรียนรู้เพิ่มเติม

คุณสมบัติพิเศษ

PureEnergy technology concept

Optimum energy efficiency with maximum throughput.
Advanced 3-phase AC technology.
Compact controls and compact hydraulic unit.
Needs-oriented control of the hydraulics or motors.
Optional telematics box for constant overview of energy usage.

Electric parameter steering

Dynamic steering behaviour depending on the selected travel program.
High lift speeds for fast lifting.
Strong hydraulic power for attachments.
Unnecessary steering movements are minimised.
Slim steering column creates more legroom.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Cost savings due to longer service life and zero maintenance compared to lead-acid batteries.
No charging rooms or ventilation required as there is no build-up of gas.

Innovative safety solutions

Deactivation of the hydraulic functions if seat is unoccupied.
Automatic parking brake prevents rolling back on ramps and slopes – even when the motor is switched off.

Maintenance-free braking systems

Motor brake for wear-free regenerative braking.
Automatic parking brake for secure stopping on ramps.
Maintenance-free disc brake for maximum braking.

Optional assistance systems

accessCONTROL for controlled truck release.
driveCONTROL controls travel speed from a defined lift height.
liftCONTROL for tilt cushioning and additional reduction of the tilt speed of the mast from a lift height of 1.5 m.
Enhanced safety with best all-round visibility of the vicinity provided by Jungheinrich addedVIEW 360°.
Jungheinrich zoneCONTROL for monitoring critical warehouse areas.

Adaptable operating concept

Five parametrisable travel programs.
Stepless single-point adjustment of armrest and steering column in two axial directions.
Adjustable lever and axis assignment of the controls.
Single or double pedal operation.
Activation of the truck by EasyAccess via Softkey, PinCode or optional Transponder card.

Ergonomic workplace

Easier steering thanks to lower steering forces and a reduction in steering wheel revolutions.
Height and tilt of the steering column can be adjusted to suit the operator.
Integration of all main controls into the armrest which moves with the operator.
Floating cab for low vibrations as the cabin is detached from the frame.
Clear view of the load thanks to optimised chain and hose layout.
Compact nested profile package with excellent visibility.
High-resolution 4-inch display and USB port as standard.






ภาพรวมรายละเอียดรุ่น

Model	กำลังโหลด	ยกสูง	ความเร็วในการเดินทาง	ความยาวโดยรวม	แรงดันแบตเตอรี่
EFG 316k	1,600 kg	7,000 mm	17 km/h	3,144 mm	48 V
EFG 316	1,600 kg	7,000 mm	17 km/h	3,252 mm	48 V
EFG 318k	1,800 kg	7,000 mm	17 km/h	3,164 mm	48 V
EFG 318	1,800 kg	7,000 mm	17 km/h	3,272 mm	48 V
EFG 320	2,000 kg	7,000 mm	17 km/h	3,272 mm	48 V
