โฟล์คลิฟท์ไฟฟ้าแบบสามล้อ 1.2 ตัน รุ่น EFG 112

2900 - 7000 mm
1200 kg

Powerful lift hydraulics for best performance even with attachments
PureEnergy concept provides optimised energy efficiency
Compact size for maximum manoeuvrability
Best visibility on the market thanks to compact mast
Ergonomic workplace for fatigue-free work

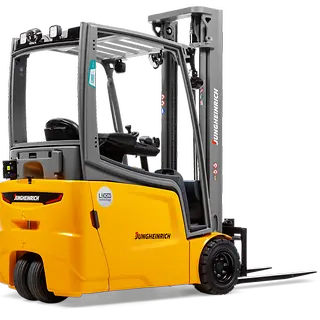

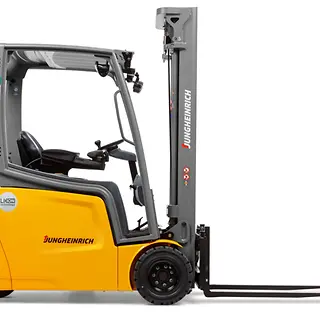

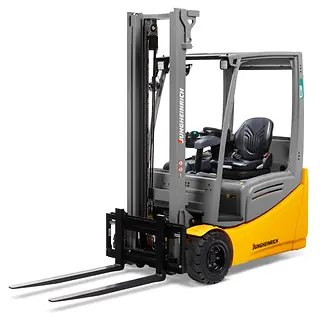

โฟล์คลิฟท์ไฟฟ้าแบบสามล้อ รุ่น EFG 112

Our agile and versatile Series 1 EFGs are ideal for fast and efficient work with high lift speeds. The powerful hydraulics provide the best performance, especially when used with attachments. Advanced 3-phase AC technology and the PureEnergy technology concept guarantee optimum efficiency levels at all times. This will enable you to achieve maximum throughput with minimum consumption. Thanks to sophisticated ergonomics, intuitive operation and the best all-round visibility with the compact mast, the power of your EFG can be fully utilised on every job. The truck also impresses in terms of energy efficiency: with lithium-ion batteries you benefit from the full power of the three-wheel counterbalance forklift truck thanks to fast booster charging and zero maintenance.

ลิเธียมไอออน

เทคโนโลยีแบตเตอรี่ลิเธียมไอออน

ด้วยเทคโนโลยีแบตเตอรี่ลิเธียมไอออน คุณสามารถวางใจได้ทุกสถานการณ์ - สมรรถนะเต็มกำลังที่สิ้นเปลืองพลังงานต่ำกว่าถึง 20% อายุใช้งานได้ยาวนานกว่า 3 เท่า ใช้เวลาชาร์จต่ำ ไม่ต้องดูแลรักษา ช่วยคุณลดต้นทุนค่าใช้จ่ายโดยรวมของรถยกทั้งฟลีทและลดค่าใช้จ่ายในการดำเนินงานอย่างเห็นได้ชัด

เรียนรู้เพิ่มเติม

คุณสมบัติพิเศษ

PureEnergy technology concept

Advanced 3-phase AC technology.
Compact controls and compact hydraulic unit.
Fewer battery exchanges due to significantly extended work cycles.
Strong hydraulic power for attachments.
Needs-oriented control of the hydraulics or motors.

Professional battery management

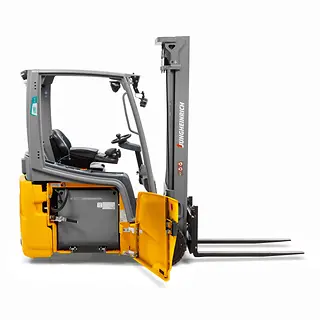

Simple battery exchange via lateral battery access.
Individual exchange systems using pallet trucks, stackers or cranes.
Space-saving charging and simple maintenance.
Safe, horizontal transport of the battery unit.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Cost savings due to longer service life and zero maintenance compared to lead-acid batteries.
No charging rooms or ventilation required as there is no build-up of gas.

Optional assistance systems

accessCONTROL for controlled truck release.
driveCONTROL controls the travel speed from a defined lift height.
liftCONTROL for tilt cushioning and additional reduction of the tilt speed of the mast from a lift height of 1.5 m.
Enhanced safety with the best all-round visibility of the vicinity provided by Jungheinrich addedVIEW 360° camera system.
Jungheinrich zoneCONTROL for monitoring critical warehouse areas and protecting against collisions.

Maintenance-free braking systems

Motor brake for wear-free regenerative braking.
Automatic parking brake for secure stopping on ramps.
Maintenance-free disc brake for maximum braking.

Innovative safety solutions

Deactivation of the hydraulic functions if seat is unoccupied.
Automatic parking brake prevents rolling back on ramps and slopes – even when the truck is switched off.

Adaptable operating concept

Five travel programs with adjustable parameters.
Stepless single-point adjustment of armrest and steering column in two axial directions.
Adjustable lever and axis assignment of the controls.
Single or double pedal operation.
Activation of the truck by EasyAccess via Softkey, PinCode or optional Transponder card.

Ergonomic workplace

Lower steering forces and reduced steering wheel revolutions for easier steering.
More legroom due to removal of hydraulic components in knee area.
Height and tilt of the steering column can be adjusted to suit the operator.
Integration of all main controls into the suspended armrest.
Floating cab for low vibrations as the cabin is detached from the frame.
Clear view of the load thanks to optimised chain and hose configuration.
Compact nested profile package with excellent visibility.
High-resolution 4-inch display and USB port as standard.




ภาพรวมรายละเอียดรุ่น

Model	กำลังโหลด	ยกสูง	ความเร็วในการเดินทาง	ความยาวโดยรวม	แรงดันแบตเตอรี่
EFG 112	1,200 kg	7,000 mm	12 km/h	2,933 mm	48 V
