รถพ่วงลากแบบยืน 3.0 ตัน

3000 kg

Very narrow construction with 600 mm width
High energy efficiency thanks to 24-V three-phase motor
Safe cornering thanks to curveCONTROL
Impulse control speedCONTROL
Semi-automatic remote coupling release (optional)

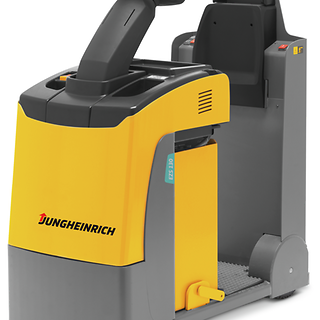

EZS 130

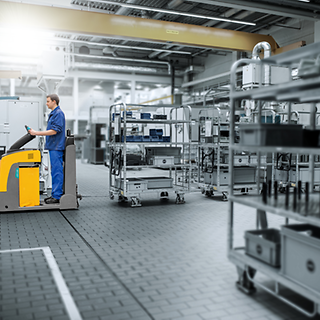

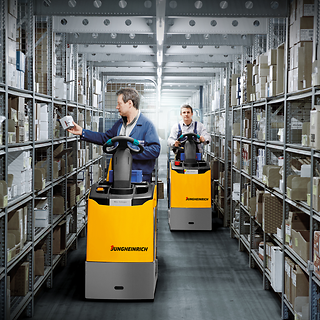

Our economical and compact EZS 130 is a very slim tow tractor for pulling trailers up to 3000 kg. Due to its narrow width of just 600 mm it is predestined for confined areas. Thanks to its high flexibility the truck is also ideal for manoeuvring small parts in a space-saving tow train. By means of different couplings the vehicle can easily be adapted to nearly any trailer type. The loading area can be varied as required by coupling several trailers. Continuously high performance paired with maximum speed is ensured by the 24-V 3-phase drive motor with optimised efficiency. The easily accessible coupling, a low stand-on platform for effortless mounting and dismounting and the supportive backrest ensure ergonomic working. Furthermore, the multifunction steering wheel jetPILOT, the automatic parking brake and other intelligent assistance systems increase driving safety and comfort.

ลิเธียมไอออน

รถยกที่เชื่อมต่อข้อมูลการใช้งานได้

กล่องเทเลเมติกส์ในแพคเกจเริ่มต้น (ที่ติดตั้งไปกับตัวรถยกจากโรงงาน) ช่วยให้คุณสามารถบริหารจัดการฟลีทรถยกได้อย่างมีประสิทธิภาพ ทั้งช่วยให้คุณประหยัดเวลา พลังงาน และค่าใช้จ่าย กล่องเทเลเมติกส์สามารถดึงข้อมูลประวัติการใช้งานรถยกย้อนหลังและทำงานร่วมกับฮาร์ดแวร์และซอฟต์แวร์อื่นๆเพิ่มเติมได้.

เรียนรู้เพิ่มเติม

คุณสมบัติพิเศษ

Innovative 3-phase AC technology

More power and performance while simultaneously reducing operating costs due to maintenance-free 3-phase AC technology.
High efficiency levels with excellent energy management.
Powerful acceleration.
Rapid direction change.
Maintenance-free drive motor without carbon brushes.
2-year warranty on driving motor.

Long operating times with lead-acid battery

Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
Standard version: 2 PzS 250 Ah.
Integrated charger (24 V/ 30 A) for easy charging at any 230-V mains socket (optional).

Available with lithium-ion technology

High degree of availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build up of gas.

Comfortable and safe driving

Impulse control speedCONTROL: The speed set by the drive switch is maintained under all travel conditions – even on gradients.
Three adjustable travel programs for individual adaptation to any requirements.
Regenerative braking with energy recovery when slowing down.
Safe cornering with curveCONTROL automatic speed reduction – the operator has the truck under control at all times.

Always informed

Extensive display and setting instruments always provide a complete overview.
CanDis (optional) provides information on the battery discharge status, number of operating hours and error codes.
Activation of truck via PIN code and selection of 3 travel programs via keypad (optional).
Adjustable travel parameters via CanDis and CanCode (optional).

Optimum ergonomics

Low stand-on platform for frequent and effortless entry and exit.
Short distances for the operator between the cab and the coupling or the load.
The coupling is clearly visible from any position and is also easily accessible.
Fast and easy trailer coupling and decoupling with semi-automatic remote release from operator platform (optional).
jetPILOT electric steering wheel.
CSE load wheels for high travel comfort.

Robust and compact
