ETV C16/ C20

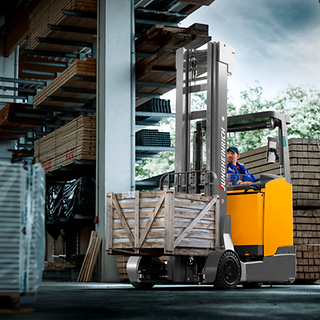

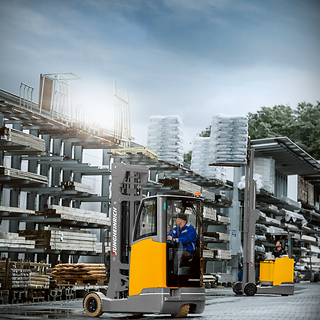

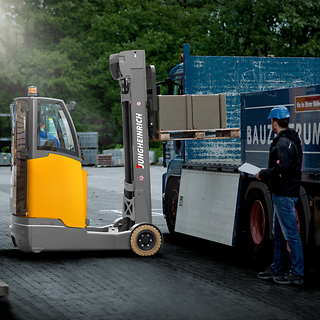

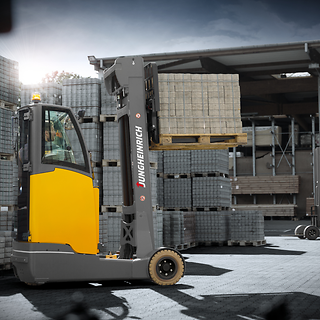

Our flexible and reliable Series C reach trucks are the best choice when it comes to efficient stacking and retrieval in combined warehouse and yard use with varying ground conditions. Thanks to their super elastic tyres, they are perfect for safely moving goods in confined spaces or for high lifting operations.Space-saving design, high performance data and ergonomically perfect working conditions truly make these trucks the perfect all-round solution. Ergonomically arranged displays and controls as well as excellent visibility facilitate work and increase safety. The comfortable driver's cab is optionally available for frequent outdoor use.Whether in conjunction with pallet or drive-through racking, in single-shift or multi-shift applications – our versatile reach trucks achieve optimum energy efficiency through perfectly synchronised motors, controls and software systems.

ลิเธียมไอออน

รถยกที่เชื่อมต่อข้อมูลการใช้งานได้

กล่องเทเลเมติกส์ในแพคเกจเริ่มต้น (ที่ติดตั้งไปกับตัวรถยกจากโรงงาน) ช่วยให้คุณสามารถบริหารจัดการฟลีทรถยกได้อย่างมีประสิทธิภาพ ทั้งช่วยให้คุณประหยัดเวลา พลังงาน และค่าใช้จ่าย กล่องเทเลเมติกส์สามารถดึงข้อมูลประวัติการใช้งานรถยกย้อนหลังและทำงานร่วมกับฮาร์ดแวร์และซอฟต์แวร์อื่นๆเพิ่มเติมได้.

เรียนรู้เพิ่มเติม

คุณสมบัติพิเศษ

High-performance mast

Maximum safety and effective utilisation of warehouse capacity at extreme heights.
Triplex masts with lifting heights up to 7,400 mm and mast tilt.
Excellent visibility of the load.
Low clearances at high lift heights.
High residual capacities even at extreme lift heights.
Sensitively control of mast tilt.
High-quality sections provide an extremely long service life.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Cost savings due to longer service life and low maintenance compared with lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Optional assistance systems

operationCONTROL: The load weight is sequentially measured and compared with the residual capacity of the truck. If the limit value is approached, an optical and acoustic warning is issued.
positionCONTROL with SNAP function: The rack height select, facilitates straightforward, fast and secure stacking without having to push additional buttons.

4-Inch full-colour display

Display of direction of travel and wheel position.
Battery status, with display of time remaining until the next charge required.
3 adjustable travel programs for individual adjustment to any requirements.
Operating hours and time of day.
Lift height (optional).
Load weight (optional).
Residual capacity (optional).

Ergonomic cockpit

For activating all hydraulic functions, also selects the direction of travel and the horn.
All the controls are within the operator's field of vision and are clearly designated for each specific function.
Travel direction switch, features intuitive direction change.
Precision operation due to control of all functions.
Extra attachments such as a fork positioner (optional) can also be comfortably controlled with the soloPILOT.
multiPILOT (optional).

Ergonomic workstation

Generous space, even for tall operators.
Electric steering, available in 180° or 360° mode.
When driving in a straight line, the steering wheel spinner knob is always at the optimum ergonomic position.
Optional panorama overhead guard provides a clear view of the raised load.
Fabric seat with adjustment options for seating position, backrest and body weight.
Important controls within easy reach.
Automotive layout of the pedals.

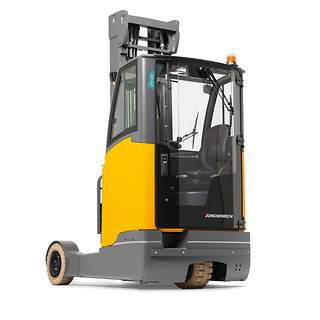

Driver cabs (optional)

With roof window, windscreen and side windows for protection against frequent rain (Comfort 1).
With roof window, windscreen & side windows and a door for all round protection (Comfort 2).
