รถยกลากพาเลทสเตนเลสปรับระดับได้ 1.5 ตัน

710 mm
1500 kg

Completely corrosion, salt, and acid-resistant
Available with manual or electronic hydraulic system
Protected hydraulics prevents ingress of water
Easy to clean construction
Food grade lubricants (class H1/H2)

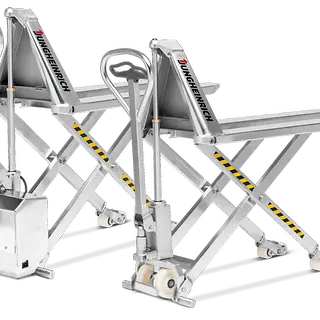

AMX I15/ I15p/ I15e/ I15ep

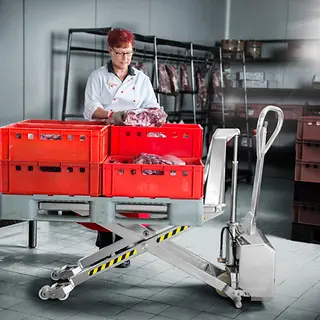

Our versatile scissor lift hand pallet trucks AMX I17/I15e in the stainless steel version are the ideal vehicles for all applications in aggressive environments with highest hygiene requirements. The inox steel used for these models is extremely corrosion resistant against humidity, acids and salts, therefore the trucks are a perfect fit in the food industry as well as the pharmaceutical and chemical industry. When these models were designed, the possibility to clean them quickly was of utmost importance. You will not find any hard to reach niches or hollow spaces. To guarantee food safety all used lubricants are food grade. The closed fork tips offer additional protection against slashes form the tyres. Naturally, this series also offers the flexibility of our scissor lift hand pallet trucks: as hand pallet truck, lift table or work bench.

คุณสมบัติพิเศษ

Efficient Handling

Smooth controls equally suitable for both left-handed and right-handed operators.
Particularly sensitive and controlled lowering of goods with the special lowering valve.
The optional fast lift (up to 120 kg) ensures that euro pallets can be lifted clear of the floor with just 3 pump strokes.
The maximum lift height is achieved with only 5 pump strokes.
Optimised hydraulic system for effortless pumping.
Drawbar pull required is reduced by the bushes on the wheels.

Built-in charger (AMX I15e)

Standard built-in rectifier.
Charging of maintenance-free batteries on every 230 V electricity outlet.
Maintenance-free 65-Ah battery.

Highest protection from corrosion

Acid resistant stainless steel chassis.
Protection from humidity though galvanised surfaces.

Safe and manoeuvrable

Safe and easy application, even in the most confined spaces, due to the short chassis length of only 340 mm.
Additional pillars for reliable safety for a lifted height up to 800 mm.
Better stability while taking strain off the ground with standard tandem rolls.
Easy pallet pick-up due to skid bar at fork tips.
Pump unit with integrated tank and lowering valve for sensitive lowering through manual lever.
Pressure limiting valve to protect hydraulics from overloading.

Maximum stability and durability

Strong forks and contoured shapes.
Welded tiller mounting.
Protected entry rollers.
Hardened steel.

Hygiene to the last detail

Robust and torsion free closed fork tips protect the cargo from splashing from the ground.
Hollow spaces that are either completely closed or easy to reach allow for effective cleaning without hideouts for bacteria.
Grease nipples on all moving parts.
Food grade lubricants (class H1 and H2).

Individual equipment

Lifting and lowering: Manual or electric hydraulic with 1.2 kW lift motor.
Polyurethane tyres for a comfortable and smooth run.
Nylon tyres for robustness and high chemical resistance.

ภาพรวมรายละเอียดรุ่น

Model	กำลังโหลด	ยกสูง	ความเร็วในการเดินทาง	ความยาวโดยรวม	แรงดันแบตเตอรี่
AMX I15e, 540x1200, N-BN	1,500 kg	710 mm	0 km/h	1,645 mm	12 V
AMX I15e, 540x1200, V-BV	1,500 kg	710 mm	0 km/h	1,645 mm	12 V
AMX I15ep, 540x1200, N-BN	1,500 kg	710 mm	0 km/h	1,645 mm	12 V
AMX I15ep, 540x1200, V-BV	1,500 kg	710 mm	0 km/h	1,645 mm	12 V
AMX I15, 540x1200, N-BN	1,500 kg	710 mm	0 km/h	1,580 mm	-
AMX I15, 540x1200, V-BV	1,500 kg	710 mm	0 km/h	1,580 mm	-
AMX I15p, 540x1200, N-BN,	1,500 kg	710 mm	0 km/h	1,580 mm	-
AMX I15p, 540x1200, V-BV	1,500 kg	710 mm	0 km/h	1,580 mm	-
