Electric pedestrian pallet truck 2 t.

2000 kg

Quick and easy operating due to its compact design
Multifunctional tiller arm for excellent manoeuvribility and safety
Outstanding stability when cornering due to its ProTracLink-System
Robust solid steel chassis ideal for heavy duty operation
Powerful and economic due to maintenance-free 3-phase AC motor

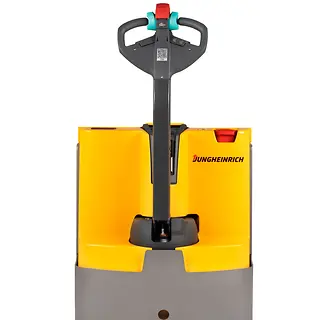

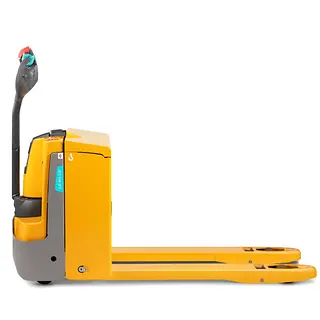

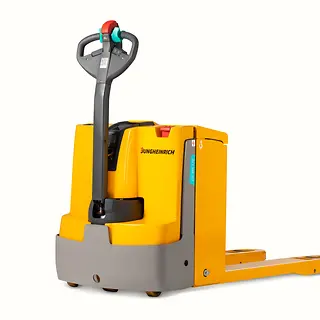

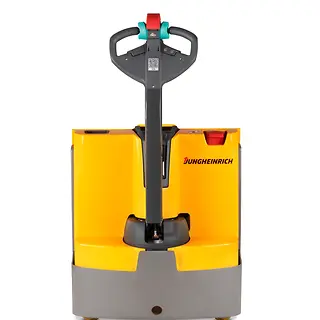

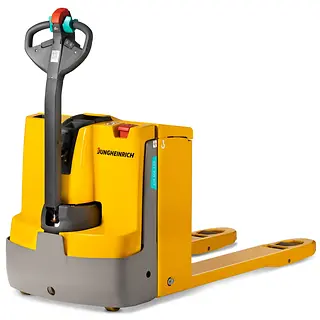

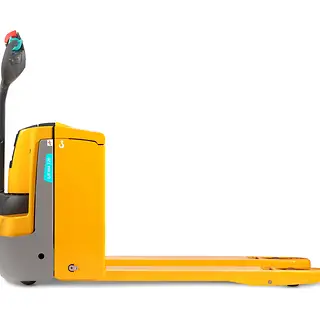

EJE MA 120

Our robust and powerful pedestrian pallet truck EJE MA 120 are particularly designed for efficient loading and unloading HGVs, as well as horizontal transporting over short distance. It is your first choice with great balance of performance and economical. The optimum efficiency, supplied from 3-phase AC technology, ensures high speed and powerful acceleration in every situation – the ideal precondition for fast, efficient goods throughput. Additionally, the optional lithium-ion technology with short charging time and opportunity charging saves your valuable time, perfect for multi-shift operation. The operator has everything under control at all times with the low-mounted long tiller. It ensures the essential safe distance between operator and truck, particularly while cornering. If space is at a premium, the crawl speed button facilitates safe travel with the tiller in the upright position. The low truck height really pays off in a confined space, providing even the short operator with optimum visibility towards the fork tips.

คุณสมบัติพิเศษ

Long operating times

High efficiency factor with excellent use of energy resources.
Powerful acceleration.
Battery capacity up to 250 Ah ensures heavy-duty use and long operating times.
Regenerative braking brings energy back to the truck.
Opportunity charging prolongs the operating period by using lithium-ion technology.

Reduced maintenance

Maintenance-free 3-phase AC drive motor without carbon brushes.
Low support wheel wear during sloping ramp ascent due to level adjustment.
Entry and exit aids makes pallet handling even easier.
The robust chassis and components with reliable quality are beneficial for lower wear and tear.
Secure protection of controller from dust and damp due to enclosures conforming to IP54.

Effective truck protection

2-inch-display with battery discharge indicator, hour meter, error codes keeps the operator well informed about truck status.
Activation of truck via key or optional EasyAccess softkey/ key pad/ transponder reader, provides protection against unauthorized use.
Reliable data transfer between electronic components using CAN bus technology.

Safe handling

The low-mounted long tiller guarantees adequate distance between operator and truck.
Increased safety due to automatically reduced speed when manoeuvring tiller at vertical position.
Accurate and safe operating in confined space by using crawl speed button when tiller at upright position.
Emergency disconnect switch easily access.

Optimal driving characteristics

The ProTracLink technology manages a superior travel stability under both travel conditions - straight and cornering.
Choice of 3 driving programs provides a better comfort at all working scenarios.

Ergonomic tiller

Tiller arm optimally adapted to the ergonomic needs of the operator.
Rocker switch for consistently good operation in all tiller positions.
Optimally adaptable grip position for comfortable and individual use.

Additional equipment

Entry rollers.
Load guard.
Lateral battery exchange (optional).
Cold storage version.

ภาพรวมรายละเอียดรุ่น

Model	กำลังโหลด	ความเร็วในการเดินทาง	ความยาวโดยรวม	แรงดันแบตเตอรี่
EJE MA 120	2,000 kg	6 km/h	1,644 mm	24 V
