สแตกเกอร์ไฟฟ้า ยืนขับ 1.4 และ 1.6 ตัน

2400 - 6000 mm
1400 - 1600 kg

Compact & powerful with Li-ion battery.
Better use of space possible in the warehouse (narrower work aisles).
High speed and residual capacity for more efficiency.
Intelligent stacking assistance systems ensure safety.
Smart ergonomic features for fatigue-free operation.

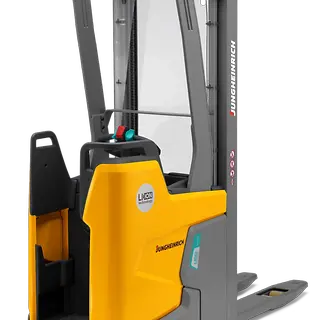

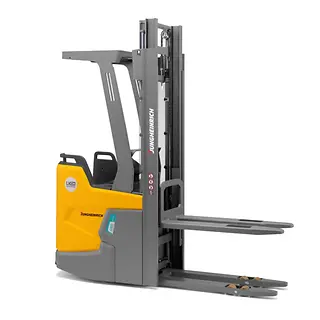

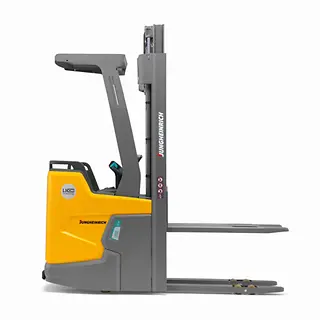

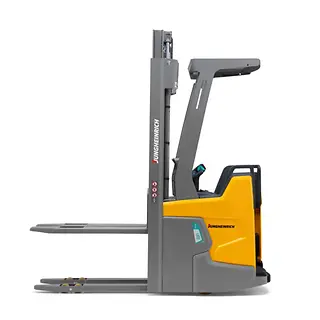

สแตกเกอร์ไฟฟ้ายืนขับ ERC 214i/ 216i

The powerful ERC i electric stacker truck is equipped with lithium-ion technology as standard – for a revolutionary, extremely compact truck design. This manoeuvrable truck is versatile and designed for safe stacking and retrieval operations at heights of up to 6 m. It can transport goods over medium to long distances and is suitable for order picking. Efficiency is maximised by high travel speeds, rapid acceleration and outstanding residual capacity. Stacking assistance systems allow for simple and safe load handling. Perfect ergonomics are ensured by the stable, cushioned stand-on platform and smartPILOT with automatic centring, which enables one-handed truck control. Thanks to good visibility through the mast and the panoramic window (optional) in the overhead guard, the operator always has a great view during the stacking process. Available with many options and additional equipment.

ลิเธียมไอออน

เทคโนโลยีแบตเตอรี่ลิเธียมไอออน

ด้วยเทคโนโลยีแบตเตอรี่ลิเธียมไอออน คุณสามารถวางใจได้ทุกสถานการณ์ - สมรรถนะเต็มกำลังที่สิ้นเปลืองพลังงานต่ำกว่าถึง 20% อายุใช้งานได้ยาวนานกว่า 3 เท่า ใช้เวลาชาร์จต่ำ ไม่ต้องดูแลรักษา ช่วยคุณลดต้นทุนค่าใช้จ่ายโดยรวมของรถยกทั้งฟลีทและลดค่าใช้จ่ายในการดำเนินงานอย่างเห็นได้ชัด

เรียนรู้เพิ่มเติม

คุณสมบัติพิเศษ

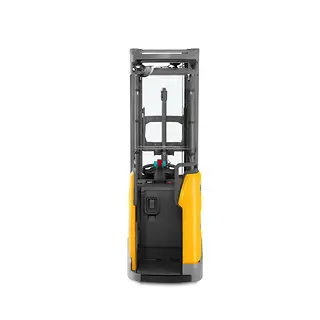

Lithium-ion technology

Significantly shorter truck dimensions due to elimination of the battery compartment.

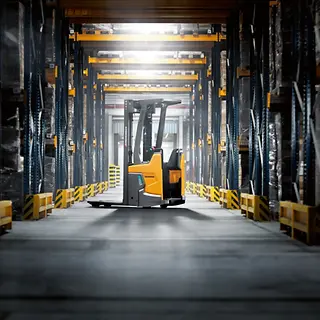

Easy manoeuvring in the racking aisle.
More efficient planning and use of space in the warehouse (narrower work aisles possible).
High availability thanks to extremely short charging times.
Cost savings due to longer service life and low maintenance requirement.

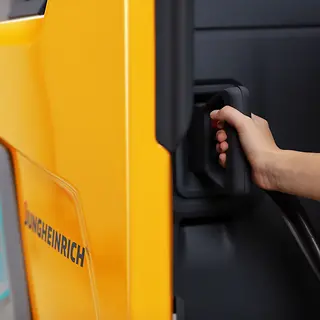

Comfort charging concept: charging interface is ergonomically located for fast and frequent booster charging.
Battery is easily accessible and can be removed in a few easy steps if necessary.

Maximum goods throughput

Efficiency performance package (standard) or drivePLUS for top speeds of 12 km/h (optional).
Simple, intuitive operation.
Extensive support for stacking and retrieval tasks.

High-performance mast

Outstanding stability, fast lifting and lowering as well as excellent visibility through the mast.
Exceptional residual capacity at high heights.
Smooth mast transition thanks to hydraulic mast retraction cushioning.

Additional options

Cold store version.

Safe operation

Adjustment of travel speed depending on the load and direction of travel.
New warning concept consisting of three components: visual (display), audible (sound signal) and tactile (vibration in the tiller handle) in the event of overload.

Optional assistance systems

operationCONTROL: Display of lift height, load weight and residual carrying height incl. warning if nominal and residual capacity is exceeded.
positionCONTROL: Rack height select incl. height indicator.

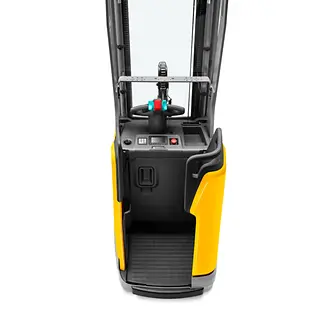

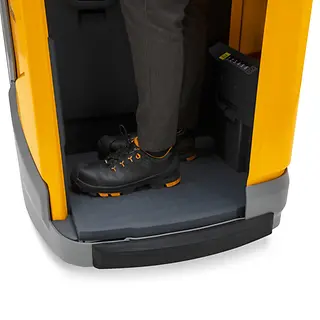

Fixed stand-on platform

3-sided protection for maximum safety of the operator.
Comfortable lateral standing and driving position for improved ergonomics.
Platform suspension is individually adjustable to the weight of the operator, ensuring joint and back-friendly travel (option).
Foot protection laser (optional): automatic reduction of the travel speed when feet protrude from the platform.

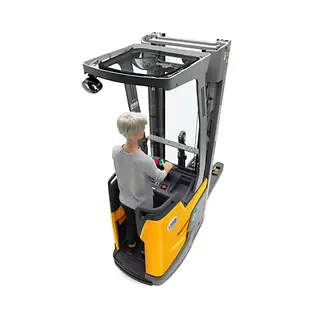

Overhead guard as per DIN ISO 6055

Robust roof for maximum protection from falling loads.
Available with cross beams or panoramic window for optimised visibility (optional).

Additional options

Load guard available in different heights.
FloorSpot.

Ergonomic workstation

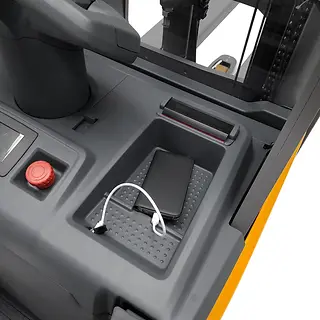

Generous storage compartments and storage opportunities on the options bracket or overhead guard.
Attachment of brackets for additional equipment.
Low platform height and generous entry width for easy access.

smartPILOT steering

Easier and more intuitive manoeuvring, especially when cornering.
More compact tiller arm with optimal access to the truck's functions and automatic centre positioning.
Off-centre arrangement for a comfortable, safe and ergonomic standing position.
Height-adjustable tiller arm.

Multifunctional display

4-inch display with language-neutral icons for the display of battery charge status with residual time display, operating hours and time.
Optional 6-inch display in operator view indicating lift height, load weight and residual carrying height.

Additional options

USB charging module.
Options bracket.
Shrink wrap holder.
Increased ease of use with optional sprung stand-on platform to reduce the vibrations felt by the operator.





ภาพรวมรายละเอียดรุ่น

Model	กำลังโหลด	ยกสูง	ความเร็วในการเดินทาง	ความยาวโดยรวม	แรงดันแบตเตอรี่
ERC 214i	1,400 kg	6,000 mm	12 km/h	2,389 mm	24 V
ERC 216i	1,600 kg	6,000 mm	12 km/h	2,389 mm	24 V

ดาวน์โหลด

ERC-2i-2020_Factsheet_EN-AU_2024-11.pdf pdf (1.3 MB)

Technical data ERC 2i pdf (1005.4 KB)

Product advantages ERC 2i pdf (3.0 MB)
