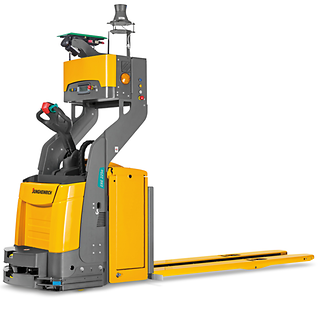

ERE 225a

Our advanced and efficient ERE 225a is an Automated Guided Vehicle System (AGV-S) based on our standard trucks in order to sustainably optimise your warehouse processes. Automation is particularly feasible when used for consistent, recurring transport tasks. The automated pallet truck convinces with its future-proof navigation components, sophisticated safety features and powerful three-phase AC drive technology. A robust design, variable fork lengths and high load capacities of up to 2,500 kg enable efficient and ergonomic operations on long-haul routes as well as multi-pallet transport. Our AGVs are piloted by laser navigation using reflectors installed on the ground, allowing for extremely precise positioning that is accurate to the millimetre. Whether in mixed operations, integrated into an existing factory structure or as a stand-alone solution – the modular system allows flexible adaptation to changing warehouse requirements.

ลิเธียมไอออน

รถยกที่เชื่อมต่อข้อมูลการใช้งานได้

กล่องเทเลเมติกส์ในแพคเกจเริ่มต้น (ที่ติดตั้งไปกับตัวรถยกจากโรงงาน) ช่วยให้คุณสามารถบริหารจัดการฟลีทรถยกได้อย่างมีประสิทธิภาพ ทั้งช่วยให้คุณประหยัดเวลา พลังงาน และค่าใช้จ่าย กล่องเทเลเมติกส์สามารถดึงข้อมูลประวัติการใช้งานรถยกย้อนหลังและทำงานร่วมกับฮาร์ดแวร์และซอฟต์แวร์อื่นๆเพิ่มเติมได้.

เรียนรู้เพิ่มเติม

คุณสมบัติพิเศษ

Established standard truck used as basis

Standard truck ERE electric pedestrian pallet truck combined with appropriate safety technology as well as automation and navigation components.
Simple manual operation in mixed mode is performed via the standard controls of the production truck.

Efficient drive technology and equipment

AC drive technology.
High capacity (up to 2,500 kg).
Robust design.
Variable fork length.

Lithium-Ionen-Technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Safety system on the vehicle

Standard personal protection scanner in the drive direction scans the travel route in front of the AGV for obstacles depending on the speed.
Should an obstacle be located in the path of the truck, the AGV will reliably come to a halt in front of it.
The sensor also scans ahead for obstacles when cornering.
Side sensors to protect the sides of the truck.
Emergency disconnect on the truck.

Process reliability in the warehouse

Everything in view with the FTS control console
The graphic display on the AGV control panel displays all the information relating to the AGV in use.
Quick overview of the status of pending transport tasks.
Prioritised orders can be entered and processed in the corresponding order.
Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.

Simple system integration

Can be easily integrated into existing IT and network landscapes.
Effortless connection to existing WMS/ERP system via Jungheinrich Logistics Interface.
For communication, the existing WLAN structure is used.

Precise navigation
