สแตกเกอร์ไฟฟ้า 1 - 1.3 ตัน

2300 - 3300 mm
1000 - 1300 kg

Entry-level truck for transporting lightweight goods in confined spaces.
Impressive manoeuvrability thanks to compact truck dimensions.
Lithium-ion battery with low energy consumption for high availability.
Innovative tiller design for efficient, one-handed operation.

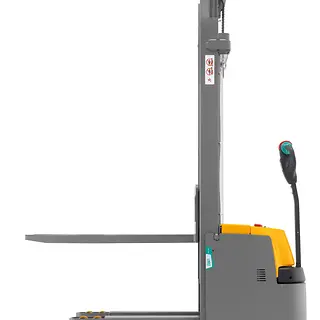

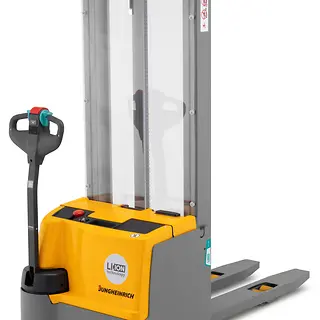

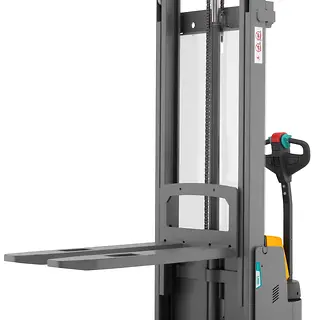

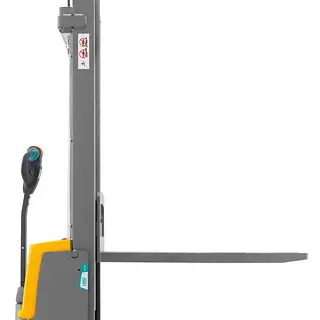

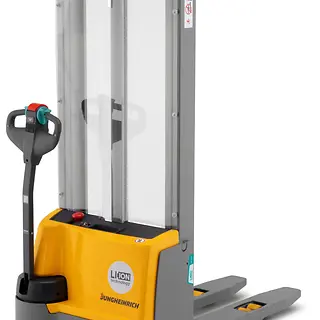

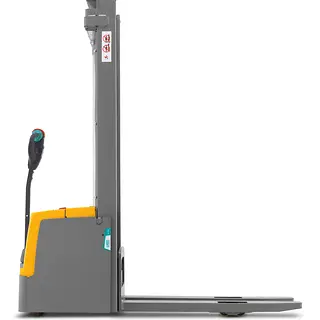

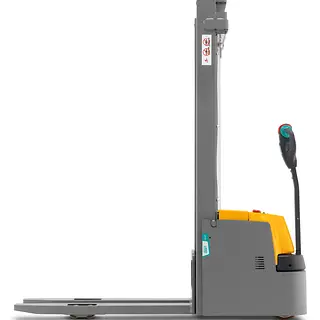

EJC M10 ZT / M13 ZT

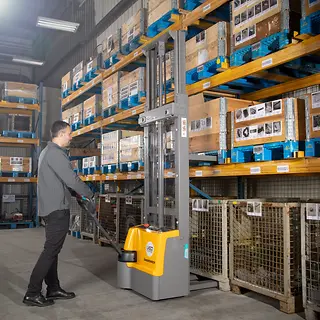

Our versatile and manoeuvrable EJC M10 ZT / M13 ZT are the ideal choice for occasional order picking and stacking of lightweight goods. Their compact design with duplex telescopic mast makes them reliable helpers especially in confined warehouse environments. The integrated lithium-ion battery, in combination with the brushless DC motor, enables cost-efficient goods throughput with low operating costs. Thanks to the built-in charger, the truck's battery can be flexibly charged at any 230-V socket. Safe working is ensured by the low chassis with optimum visibility of the fork tips as well as a long tiller for sufficient distance between the operator and the truck. Innovative tiller design with clear functions also ensures excellent ease of use.

คุณสมบัติพิเศษ

Working safely in confined spaces

Simplified manoeuvring in confined spaces by operating the slow travel button with the tiller in the upright position.

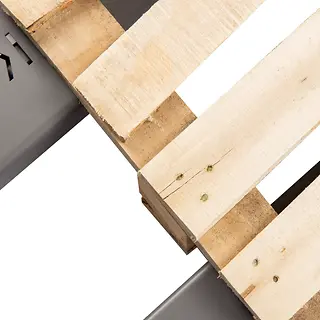

Optimum view of the fork tips due to the low frame height.
The truck can only be moved when the mains plug of the built-in charger is inserted in the specified socket on the truck.
Jungheinrich truck as per the latest EN 1175 standard.

Reduced risk of injury

Body protection switch integrated in the tiller head protects the operator from collisions.
The long safety tiller provides sufficient distance between the operator and truck.
Reduced risk of foot injuries thanks to low ground clearance.

Reliable lithium-ion technology

The built-in charger enables booster charging at any 230-V socket.
Warning light informs when the state of charge is too low.
No battery exchange and no maintenance of the lithium-ion battery necessary.
Intelligent automatic switch-off after 30 minutes without use.

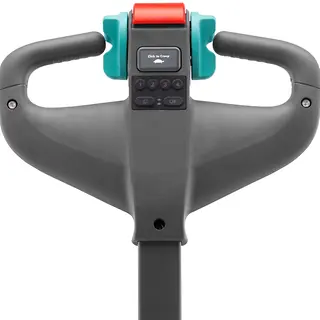

Multifunctional tiller head for intuitive work

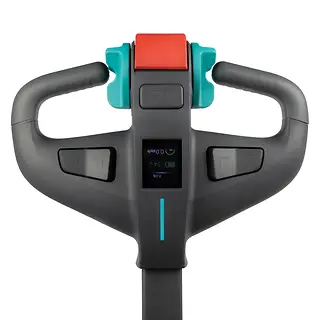

2.4-inch LCD display in the tiller head to indicate the current truck status.
Real-time display of travel speed, battery discharge status, operating hour counter and status messages for efficient work.
4-digit PIN access code in the tiller for convenient and reliable switching on of the truck.

High flexibility in use

Available in the lift heights 2,300, 2,500, 2,900 and 3,300 mm.
Activation of a slowed drive mode (3.5 km/h) via the PIN code field in the tiller.
Important control instruments such as the battery discharge indicator are centrally located on the tiller.
The available storage area offers room for necessary work equipment.

Intuitive operation

Reduced steering forces due to the low mounted tiller.
The most important functions – lifting, lowering, accelerating, braking and steering – can be controlled via one-handed operation.
Easy accessibility of the slow travel function for manoeuvring with the tiller upright.
Simple to operate for left and right-handed people.




ภาพรวมรายละเอียดรุ่น

Model	กำลังโหลด	ยกสูง	ความเร็วในการเดินทาง	ความยาวโดยรวม	แรงดันแบตเตอรี่
EJC M10 ZT 2300	1,000 kg	2,300 mm	5 km/h	1,685 mm	24 V
EJC M10 ZT 2500	1,000 kg	2,500 mm	5 km/h	1,685 mm	24 V
EJC M10 ZT 2900	1,000 kg	2,900 mm	5 km/h	1,685 mm	24 V
EJC M10 ZT 3300	1,000 kg	3,300 mm	5 km/h	1,685 mm	24 V
EJC M13 ZT 2300	1,300 kg	2,300 mm	5 km/h	1,880 mm	24 V
EJC M13 ZT 2500	1,300 kg	2,500 mm	5 km/h	1,880 mm	24 V
EJC M13 ZT 2900	1,300 kg	2,900 mm	5 km/h	1,880 mm	24 V
EJC M13 ZT 3300	1,300 kg	3,300 mm	5 km/h	1,880 mm	24 V

ดาวน์โหลด

EJC-M10-ZT-M13-ZT-(2023)_Factsheet_EN-AU_2024-11.pdf pdf (1.5 MB)

Technical data EJC M10 ZT / M13 ZT pdf (920.8 KB)

Product advantages EJC M10 ZT / M13 ZT pdf (2.4 MB)
