สแตกเกอร์ไฟฟ้า 1.0 ตัน เสาเดี่ยว

1540 - 1900 mm
1000 kg

Entry-level truck for the internal transport of goods.
Excellent manoeuvrability in confined warehouse areas.
Versatile use thanks to integrated lithium-ion battery and built-in charger.
Innovative tiller design for efficient, one-handed operation.
Modern display with integrated warning lights for intuitive operation.

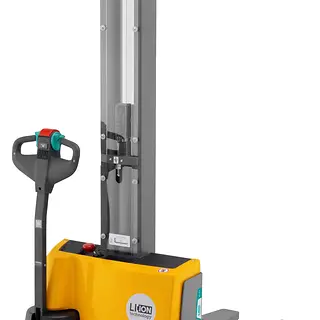

สแตกเกอร์ไฟฟ้า EJC M10 E / M10b E

Our compact and affordable EJC M10 E / M10b E electric pedestrian stackers are ideal for the stacking and removal of light goods in confined environments. Two different lift heights offer flexibility in use, while the optionally available wide-tread version is the perfect choice for picking up closed pallets. A brushless DC motor ensures consistently high performance. The built-in charger enables fast and uncomplicated charging of the maintenance-free 50-Ah lithium-ion batteries at any 230-V socket. The narrow mono-mast and the low frame height offer a clear view to the front as well as of the load to be transported. An ergonomically sophisticated tiller head with clearly configured controls ensures safe and comfortable working.

ลิเธียมไอออน

เทคโนโลยีแบตเตอรี่ลิเธียมไอออน

ด้วยเทคโนโลยีแบตเตอรี่ลิเธียมไอออน คุณสามารถวางใจได้ทุกสถานการณ์ - สมรรถนะเต็มกำลังที่สิ้นเปลืองพลังงานต่ำกว่าถึง 20% อายุใช้งานได้ยาวนานกว่า 3 เท่า ใช้เวลาชาร์จต่ำ ไม่ต้องดูแลรักษา ช่วยคุณลดต้นทุนค่าใช้จ่ายโดยรวมของรถยกทั้งฟลีทและลดค่าใช้จ่ายในการดำเนินงานอย่างเห็นได้ชัด

เรียนรู้เพิ่มเติม

คุณสมบัติพิเศษ

Reliable lithium-ion technology

Maintenance-free 50-Ah lithium-ion battery with long service life.
Built-in charger for fast charging at any standard 230-V socket.
Warning light informs in good time when the state of charge is too low.
No battery exchange necessary.
Intelligent automatic switch-off after 30 minutes without use.

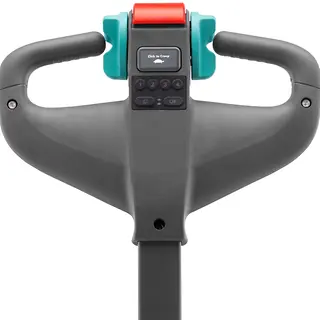

Multifunctional tiller head for efficient work

2.4-inch LCD display in the tiller head to indicate the current truck status.
Real-time display of travel speed, battery discharge status, operating hour counter and status messages for efficient work.
4-digit PIN access code in the tiller for convenient and reliable switching on of the truck.

Working safely in confined spaces

Simplified manoeuvring in confined spaces by operating the slow travel button with the tiller in the upright position.
Optimum view of the fork tips thanks to the low frame height.
The truck can only be moved when the mains plug of the built-in charger is inserted in the specified socket on the truck.
Jungheinrich truck as per the latest EN 1175 standard.

Reduced risk of injury

Body protection switch integrated in the tiller head protects the operator from collisions.
The long safety tiller provides sufficient distance between the operator and truck.
Reduced risk of foot injuries thanks to low ground clearance.

High flexibility in use

Available with the lift heights 1,540 mm and 1,900 mm.
The support arm width of the wide tread version of 882 mm and 1,052 mm can be optionally adjusted via an adapter.
Activation of a slowed drive mode (3.5 km/h) via the PIN code field in the tiller.

Intuitive operation

LED display of the current truck operating status in the tiller head for cost-effective working.
The most important functions – lifting, lowering, accelerating, braking and steering – can be controlled via one-handed operation.
Easy accessibility of the slow travel function for manoeuvring with the tiller upright.
Simple to operate for left and right-handed people.




ภาพรวมรายละเอียดรุ่น

Model	กำลังโหลด	ยกสูง	ความเร็วในการเดินทาง	ความยาวโดยรวม	แรงดันแบตเตอรี่
EJC M10 E 1540	1,000 kg	1,540 mm	5 km/h	1,615 mm	24 V
EJC M10 E 1900	1,000 kg	1,900 mm	5 km/h	1,615 mm	24 V
EJC M10b E 1540	1,000 kg	1,540 mm	5 km/h	1,664 mm	24 V
EJC M10b E 1900	1,000 kg	1,900 mm	5 km/h	1,664 mm	24 V

ดาวน์โหลด

EJC-M10-E-M10b-E-(2023)_Factsheet_EN-AU_2024-12.pdf pdf (487.7 KB)

Technical data EJC M10 E / M10b E pdf (624.1 KB)

Product advantages EJC M10 / M10b E pdf (2.5 MB)
